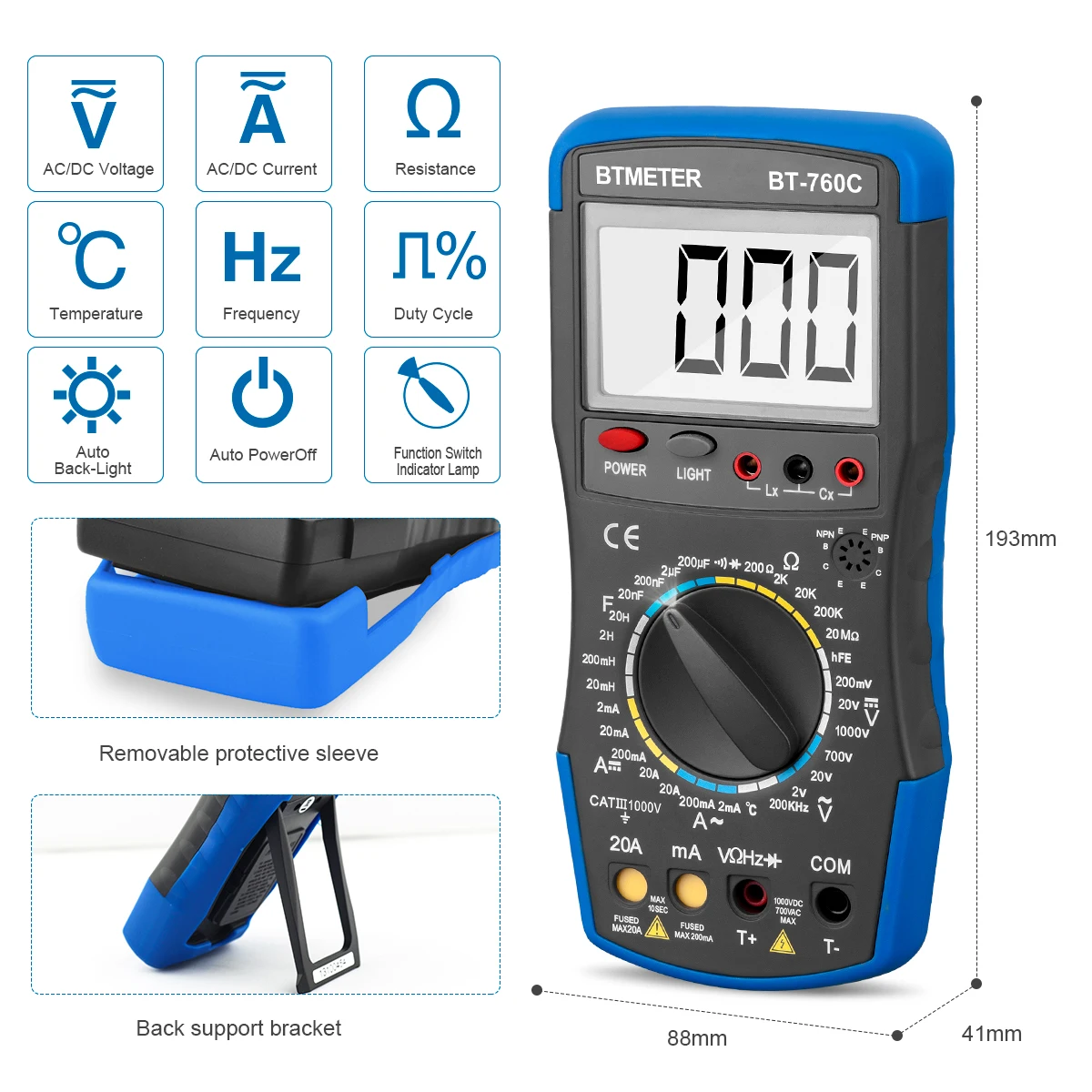

BT-760C Digital Multimeter Capacity Inductance DC/AC Voltage Test Temperature DC/AC voltage,DC/AC current,resistance,capacitance

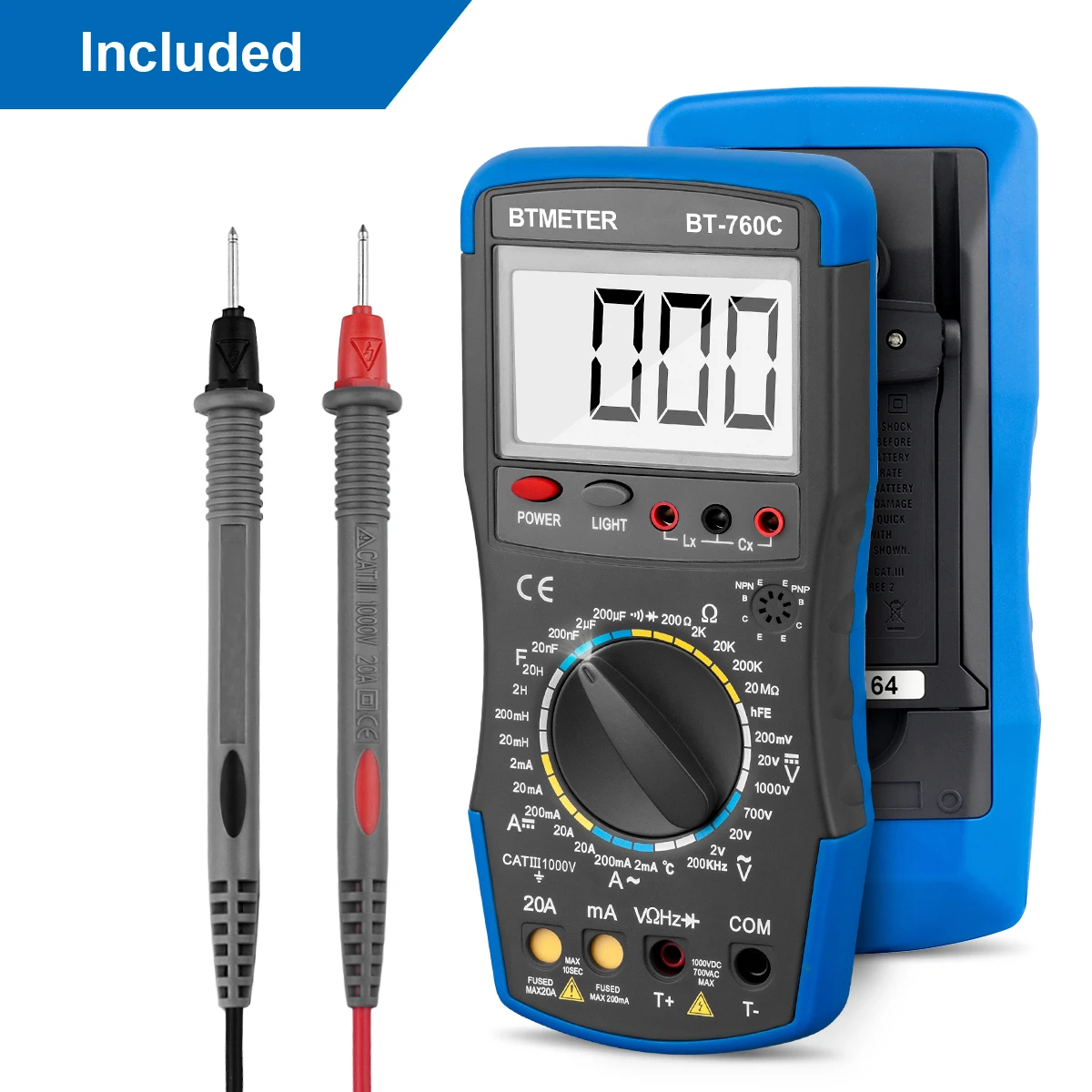

The digital mutlimeter The meter is supplied with storage bag, temperature probe, short measuring lines with crocodile clamps and measuring lines with tips.
Description:
This device is a compact, battery-powered, portable 3/2 digital multimeter for technicians, students and hobbyists who need an accurate, reliable and always ready-to-use device. The dual slope A/D converter uses C-MOS technology for automatic zeroing, polarity selection and indication of measuring range exceedances. It has full overload protection. Power is supplied by a standard 9-volt transistor radio battery. Please read this manual, which describes various useful information before using the meter.

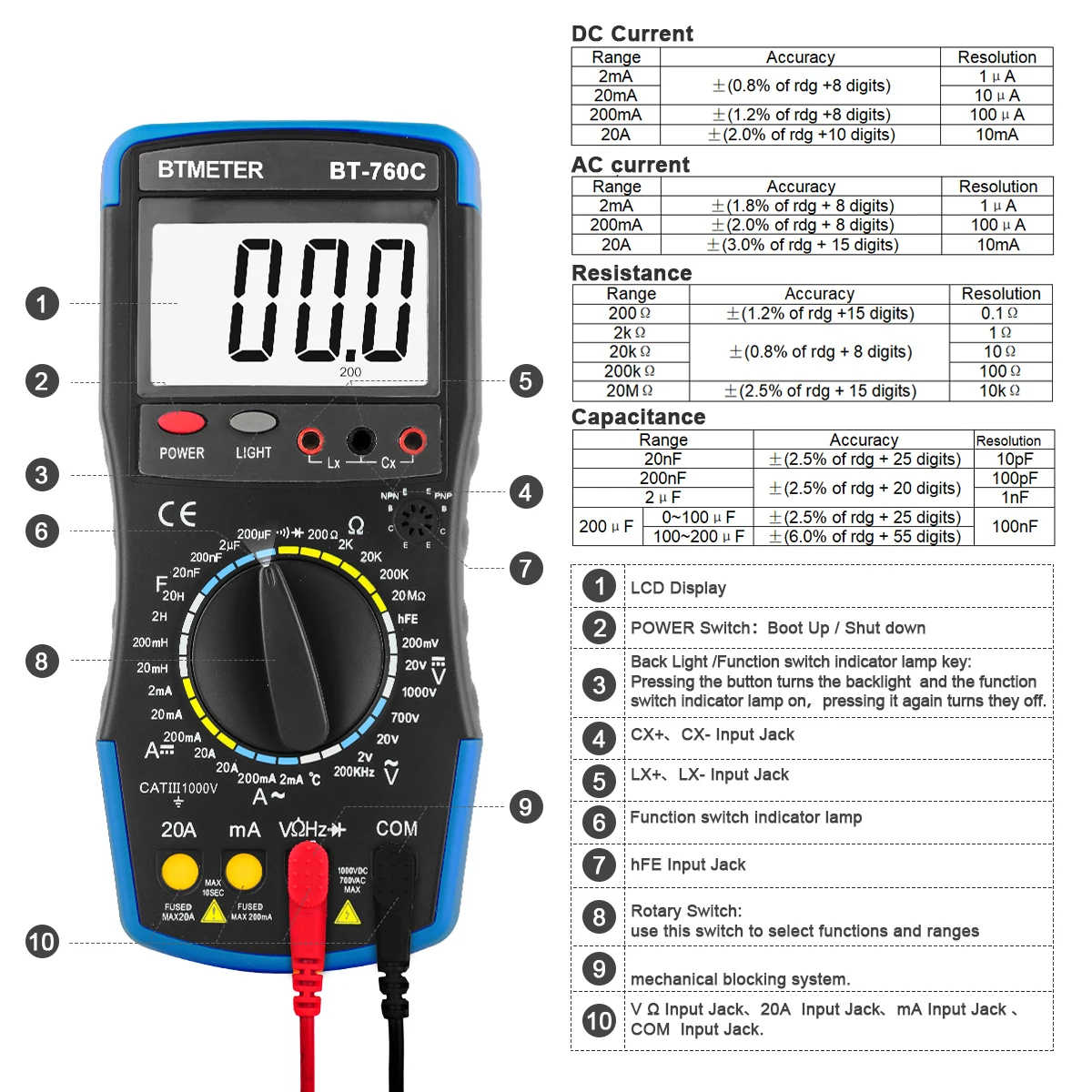

Specifications:
Specifications：BT-760C

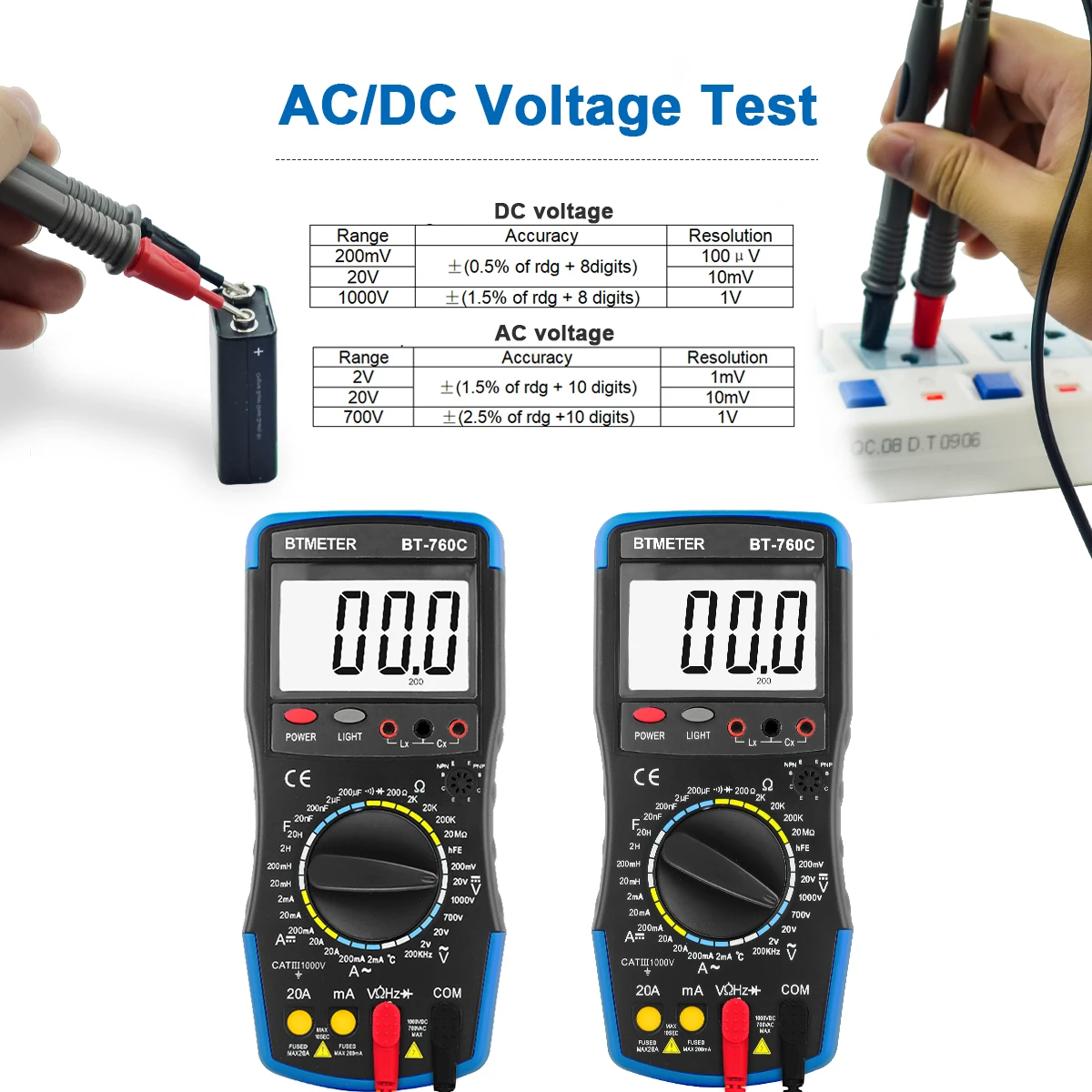

DC Current Voltage：200mV/20V/1000VAC
Voltage：2V/20V/700VDC
Current：2mA/20mA /200mA /20A
AC current：2mA/200mA /20A
Resistance：200Ω/2kΩ/20kΩ/200kΩ/20MΩ
Capacity：20nF/200nF/2μF/200μ
FInductivity：20mH/200mH/2H/20H
Temperature：-20℃～1000℃
Frequency：200kHz
Notice：1999
Diode test √
hFE test √
Transit SumBacklight √
Function switch indicator lamp √
Auto-Zero √
Auto-polarity √
Automatic power off √
